In UK Stock · Genuine Peplink Hardware
FlexModule Expansion Modules, Built to Grow With You
Field-installable expansion modules that add cellular, fiber, Ethernet, storage and SIM capacity to your modular Peplink router — FlexModule Mini for Balance 20X/380X/580X, FlexModule Plus for EPX/SDX/SDX Pro.
Shop by Family
Two Module Families, One Slot System
Each FlexModule family fits a specific router chassis — match the module to your Balance or SDX/EPX router before ordering.
FlexModule Mini
For Balance 20X, 380X & 580X
Compact single-modem expansion modules — VDSL2, LTE-A or 5G NR — that slide into the single FlexModule Mini bay on Balance 20X, 380X and 580X routers.
FlexModule Plus
For EPX, SDX & SDX Pro
Higher-capacity expansion modules — fiber, PoE Ethernet, multi-modem cellular, storage and SIM provisioning — for Peplink’s enterprise modular router platforms.
Full Catalog
All Access Point Models
From a compact mini AP for a single room to an IP67 rugged unit for the car park — every AP One model, in one place.
FlexModule Mini
VDSL2
Wired WAN

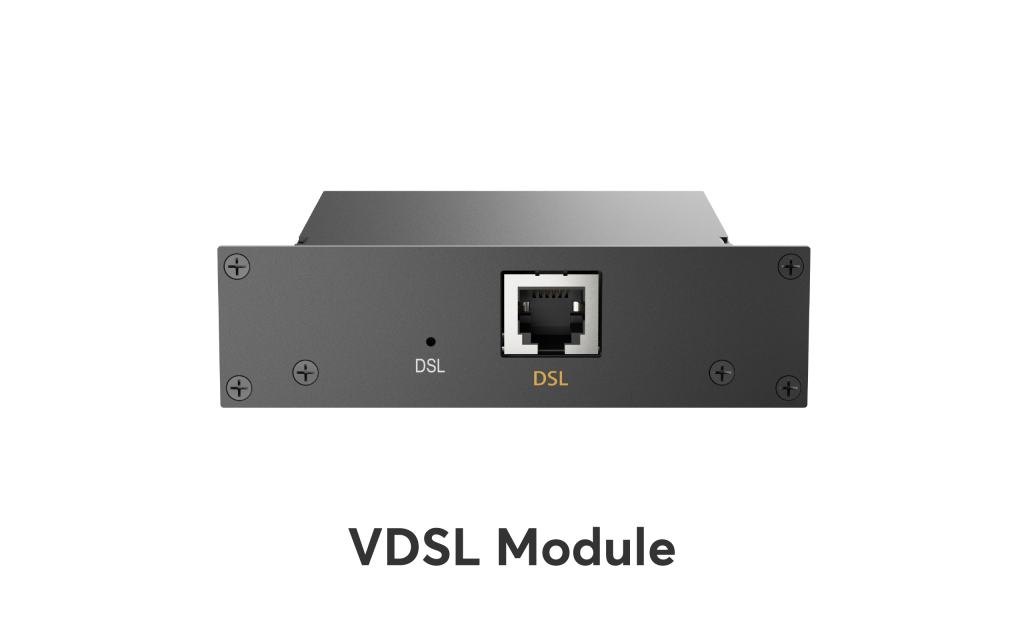

FlexModule Mini 1x VDSL
SKU: EXM-MINI-1VDSL
- 1x VDSL2 modem for wired broadband failover or primary WAN
- Compatible with Balance 20X, 380X and 580X
- Field-installable module bay — exchangeable module cover included
- RJ11 connector
FlexModule Mini
LTE-A Cat 6
Cellular WAN

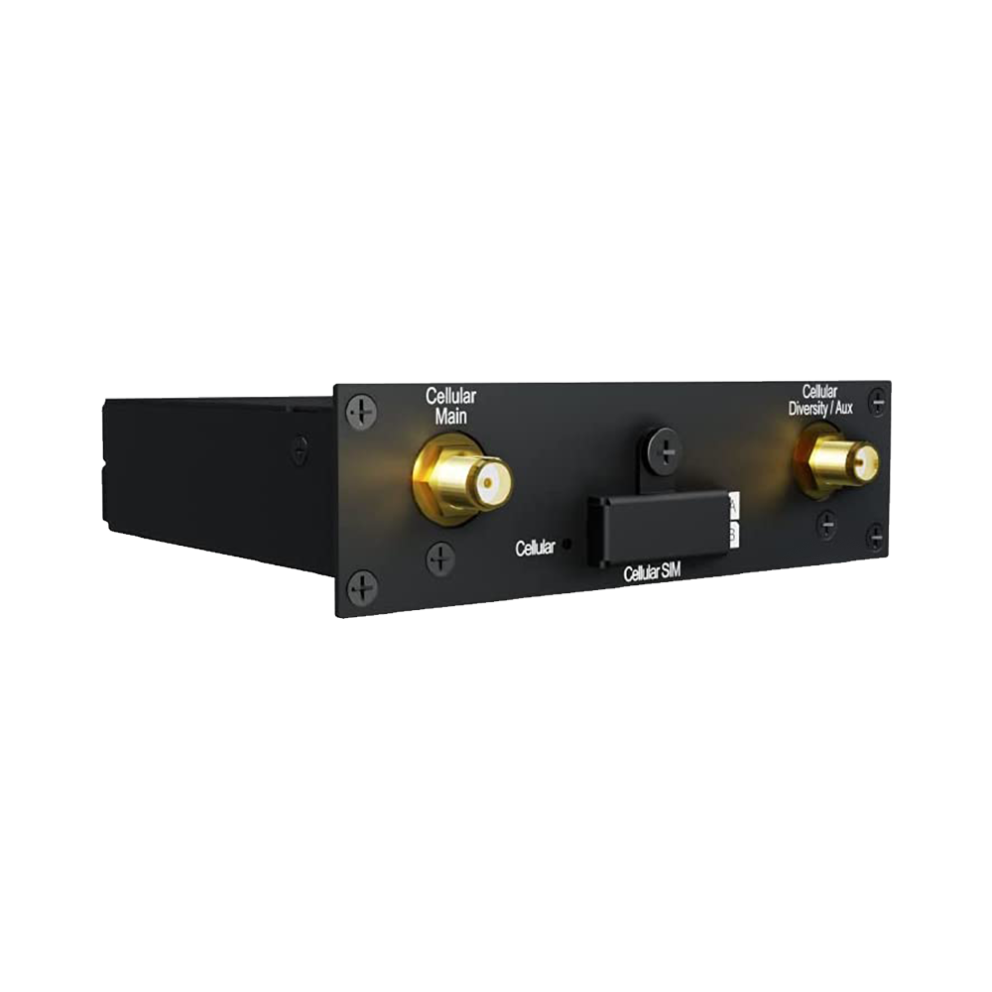

FlexModule Mini LTE-A Cat 6
SKU: EXM-MINI-1LTEA-B
- 1x LTE-A Cat 6 modem — up to 300Mbps down / 50Mbps up
- Americas/EMEA regional variant
- Compatible with Balance 20X, 380X and 580X
- 2x SMA antenna connectors — antenna not included
FlexModule Mini
LTE-A Pro Cat 12
FlexModule Mini LTE-A Pro Cat 12
SKU: EXM-MINI-1LTEA-Q
- 1x LTE-A Pro Cat 12 modem — up to 600Mbps down / 150Mbps up
- Global regional variant (China and Hong Kong TD-LTE excluded)
- Compatible with Balance 20X, 380X and 580X — exchangeable module cover included
- 2x SMA antenna connectors — antenna not included
FlexModule Mini
Cellular WAN
5G NR

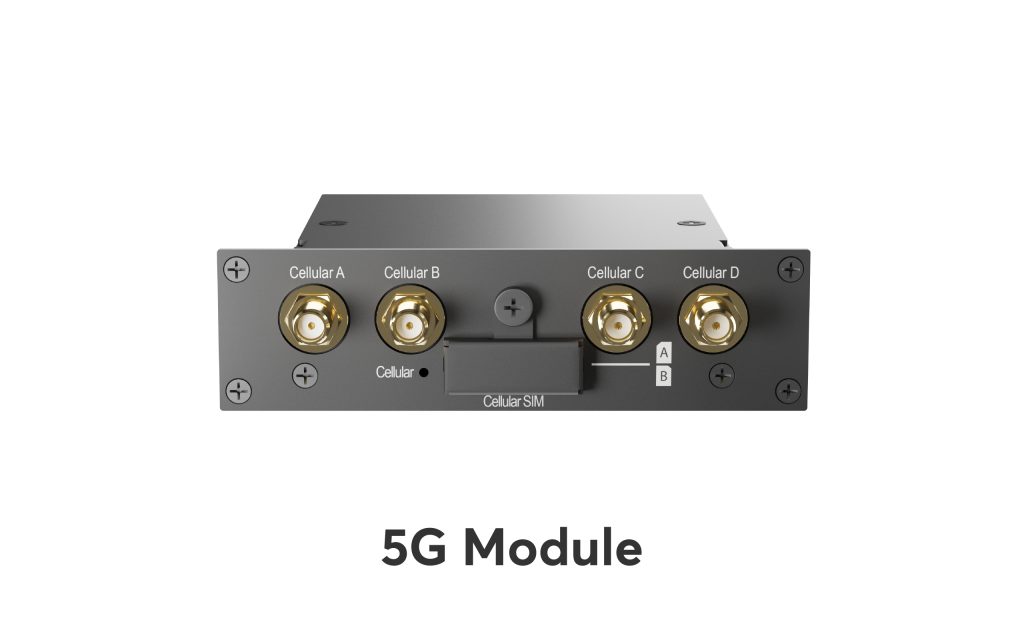

FlexModule Mini 5G
SKU: EXM-MINI-15GN
- 1x 5G NR modem — up to 3.4Gbps down / 900Mbps up (5G), Cat-20 LTE fallback up to 1.6Gbps/150Mbps
- 5G Standalone (SA) and Non-Standalone (NSA) Sub-6GHz
- Compatible with Balance 20X, 380X and 580X — exchangeable module cover included
- 4x SMA antenna connectors — antenna not included
FlexModule Plus
4x SFP+
Fiber

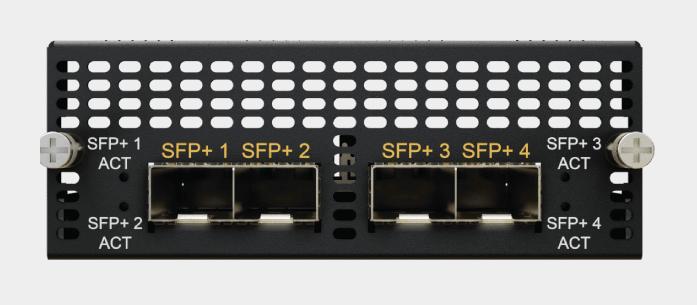

FlexModule Plus 4x SFP+
SKU: EXM-4F
- 4x SFP+ fiber ports for high-speed uplinks or LAN aggregation
- Compatible with EPX, SDX and SDX Pro
- Field-installable module bay
FlexModule Plus
8x GE PoE+
Ethernet

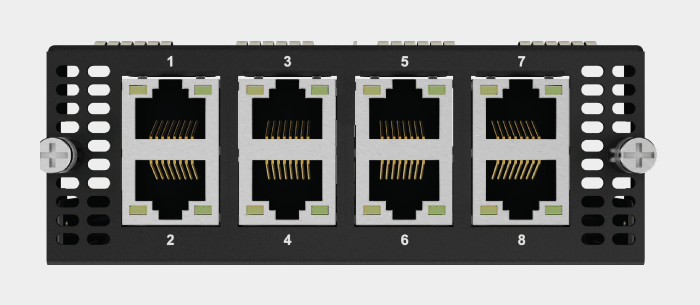

FlexModule Plus 8x GE PoE
SKU: EXM-8C
- 8x Gigabit Ethernet PoE+ ports, configurable as LAN or WAN
- Compatible with EPX, SDX and SDX Pro
- Field-installable module bay
FlexModule Plus
3x LTE-A Cat 6
FlexModule Plus 3x LTE-A Cat 6
SKU: EXM-3LTEA-P
- 3x embedded LTE-A Cat 6 modems — up to 300Mbps down / 50Mbps up per modem
- APAC regional variant, redundant SIM slots per modem
- Compatible with EPX and SDX
- 6x SMA antenna connectors plus GPS — antennas not included
FlexModule Plus
3x LTE-A Pro Cat 12

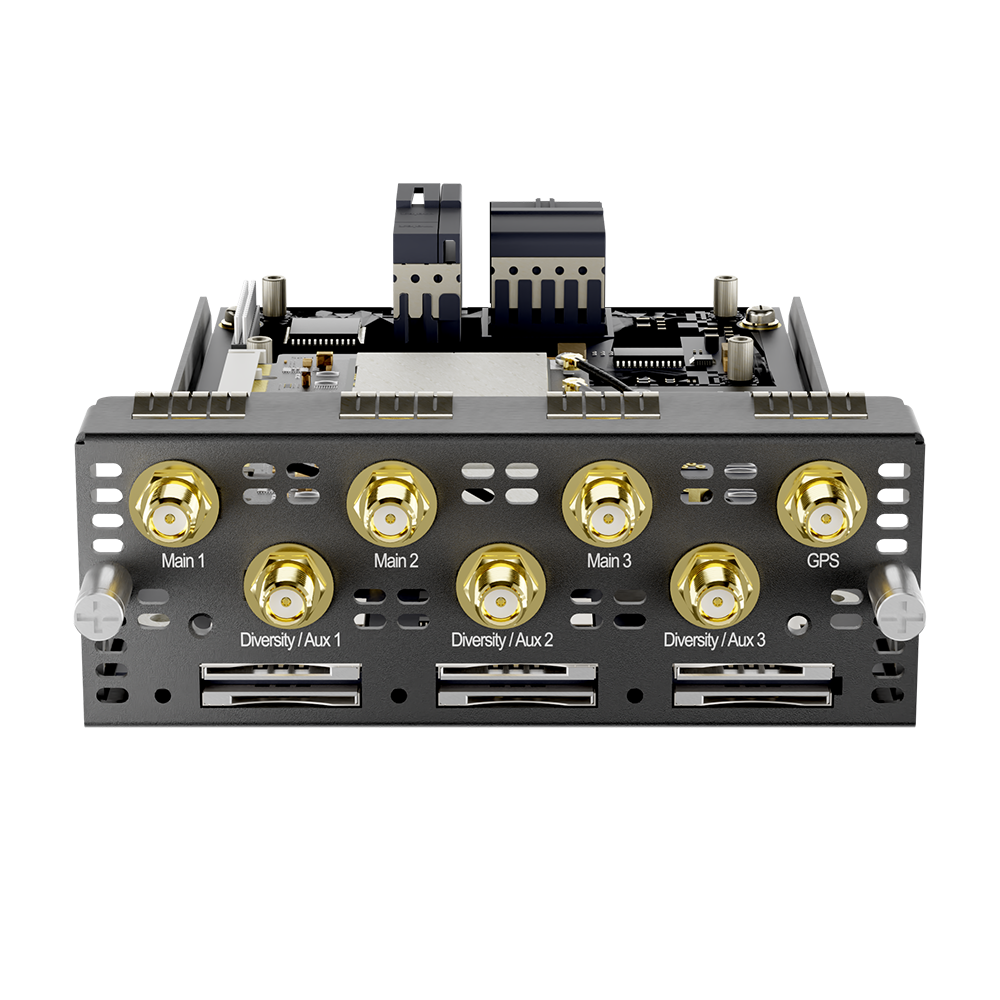

FlexModule Plus 3x LTE-A Pro Cat 12
SKU: EXM-3LTEA-R
- 3x embedded LTE-A Pro Cat 12 modems — up to 600Mbps down / 150Mbps up per modem
- Redundant SIM slots per modem
- Compatible with EPX and SDX
- 6x SMA antenna connectors plus GPS — antennas not included
FlexModule Plus
2x 5G NR
Multi-Modem

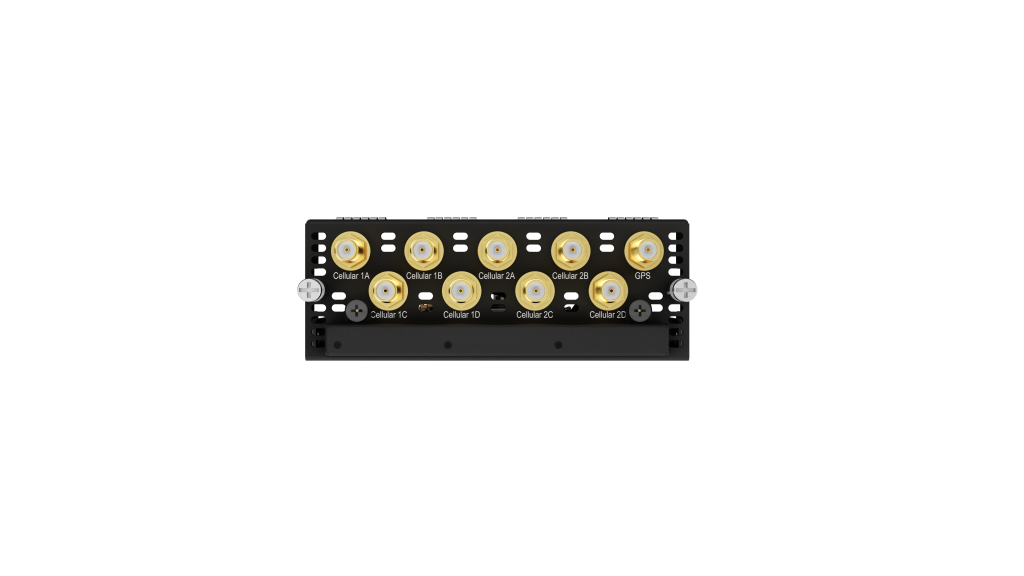

FlexModule Plus 2x 5G
SKU: EXM-2X5GN
- 2x embedded 5G/4G/3G multi-mode modems — up to 3.4Gbps down / 200Mbps up (5G), 2Gbps/150Mbps (LTE) per modem
- Dual-modem multi-carrier bonding and failover
- Compatible with EPX, SDX and SDX Pro
FlexModule Plus
1TB SSD
Docker Support

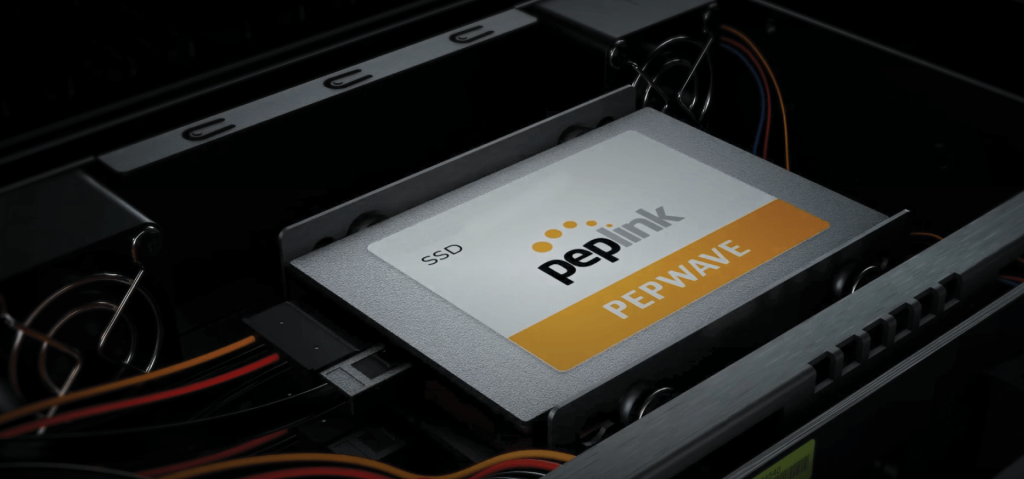

FlexModule Plus MFA Module with 1TB SSD
SKU: EXM-LCDT
- 1TB SSD for local storage, Content Hub and Docker container support
- Retains LCD front-panel controls — replaces the standard LCD module
- Compatible with EPX, SDX and SDX Pro
FlexModule Plus
Multi-Carrier

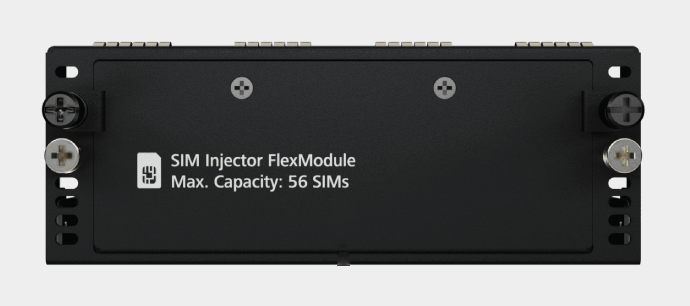

FlexModule Plus SIM Injector
SKU: EXM-SIM-BK56
- 56x SIM slots for centralized multi-carrier SIM provisioning
- Expands available SIM capacity for carrier redundancy across embedded modems
- Compatible with EPX and SDX Pro
FlexModule Mini
VDSL2
Wired WAN
FlexModule Mini 1x VDSL
SKU: EXM-MINI-1VDSL
- 1x VDSL2 modem for wired broadband failover or primary WAN
- Compatible with Balance 20X, 380X and 580X
- Field-installable module bay — exchangeable module cover included
- RJ11 connector
FlexModule Mini
LTE-A Cat 6
Cellular WAN
FlexModule Mini LTE-A Cat 6
SKU: EXM-MINI-1LTEA-B
- 1x LTE-A Cat 6 modem — up to 300Mbps down / 50Mbps up
- Americas/EMEA regional variant
- Compatible with Balance 20X, 380X and 580X
- 2x SMA antenna connectors — antenna not included
FlexModule Mini
LTE-A Pro Cat 12
FlexModule Mini LTE-A Pro Cat 12
SKU: EXM-MINI-1LTEA-Q
- 1x LTE-A Pro Cat 12 modem — up to 600Mbps down / 150Mbps up
- Global regional variant (China and Hong Kong TD-LTE excluded)
- Compatible with Balance 20X, 380X and 580X — exchangeable module cover included
- 2x SMA antenna connectors — antenna not included
FlexModule Mini
Cellular WAN
5G NR
FlexModule Mini 5G
SKU: EXM-MINI-15GN
- 1x 5G NR modem — up to 3.4Gbps down / 900Mbps up (5G), Cat-20 LTE fallback up to 1.6Gbps/150Mbps
- 5G Standalone (SA) and Non-Standalone (NSA) Sub-6GHz
- Compatible with Balance 20X, 380X and 580X — exchangeable module cover included
- 4x SMA antenna connectors — antenna not included
FlexModule Plus
4x SFP+
Fiber
FlexModule Plus 4x SFP+
SKU: EXM-4F
- 4x SFP+ fiber ports for high-speed uplinks or LAN aggregation
- Compatible with EPX, SDX and SDX Pro
- Field-installable module bay
FlexModule Plus
8x GE PoE+
Ethernet
FlexModule Plus 8x GE PoE
SKU: EXM-8C
- 8x Gigabit Ethernet PoE+ ports, configurable as LAN or WAN
- Compatible with EPX, SDX and SDX Pro
- Field-installable module bay
FlexModule Plus
3x LTE-A Cat 6
FlexModule Plus 3x LTE-A Cat 6
SKU: EXM-3LTEA-P
- 3x embedded LTE-A Cat 6 modems — up to 300Mbps down / 50Mbps up per modem
- APAC regional variant, redundant SIM slots per modem
- Compatible with EPX and SDX
- 6x SMA antenna connectors plus GPS — antennas not included
FlexModule Plus
3x LTE-A Pro Cat 12
FlexModule Plus 3x LTE-A Pro Cat 12
SKU: EXM-3LTEA-R
- 3x embedded LTE-A Pro Cat 12 modems — up to 600Mbps down / 150Mbps up per modem
- Redundant SIM slots per modem
- Compatible with EPX and SDX
- 6x SMA antenna connectors plus GPS — antennas not included
FlexModule Plus
2x 5G NR
Multi-Modem
FlexModule Plus 2x 5G
SKU: EXM-2X5GN
- 2x embedded 5G/4G/3G multi-mode modems — up to 3.4Gbps down / 200Mbps up (5G), 2Gbps/150Mbps (LTE) per modem
- Dual-modem multi-carrier bonding and failover
- Compatible with EPX, SDX and SDX Pro
FlexModule Plus
1TB SSD
Docker Support
FlexModule Plus MFA Module with 1TB SSD
SKU: EXM-LCDT
- 1TB SSD for local storage, Content Hub and Docker container support
- Retains LCD front-panel controls — replaces the standard LCD module
- Compatible with EPX, SDX and SDX Pro
FlexModule Plus
Multi-Carrier
FlexModule Plus SIM Injector
SKU: EXM-SIM-BK56
- 56x SIM slots for centralized multi-carrier SIM provisioning
- Expands available SIM capacity for carrier redundancy across embedded modems
- Compatible with EPX and SDX Pro
Compare
FlexModule Comparison Table
Modem, port and compatibility details are drawn directly from each module’s datasheet. Use the filters above to narrow the catalog — this table follows the same filter.
| Model | SKU | Compatible With | Modem / Function | Features | Price (ex VAT) |
|---|---|---|---|---|---|
| EXM-MINI-1VDSL | Balance 20X, 380X, 580X | 1x VDSL2 modem | VDSL2Wired WAN |
£189.00 £179.55 Save £9.45 | |
| EXM-MINI-1LTEA-B | Balance 20X, 380X, 580X | 1x LTE-A Cat 6 modem (Americas/EMEA) | LTE-A Cat 6Cellular WAN |
£239.00 £227.05 Save £11.95 | |
| EXM-MINI-1LTEA-Q | Balance 20X, 380X, 580X | 1x LTE-A Pro Cat 12 modem (Global*) | LTE-A Pro Cat 12Cellular WAN |
£369.00 £350.55 Save £18.45 | |
| EXM-MINI-15GN | Balance 20X, 380X, 580X | 1x 5G NR modem (Sub-6GHz, SA/NSA) with Cat-20 LTE fallback | 5G NRCellular WAN |
£659.00 £626.05 Save £32.95 | |
| EXM-4F | EPX, SDX, SDX Pro | — | 4x SFP+Fiber |
£1,409.00 £1,338.55 Save £70.45 | |
| EXM-8C | EPX, SDX, SDX Pro | — | 8x GE PoE+Ethernet |
£1,409.00 £1,338.55 Save £70.45 | |
| EXM-3LTEA-P | EPX, SDX | 3x LTE-A Cat 6 modems (APAC) | 3x LTE-A Cat 6Multi-Modem |
£1,399.00 £1,329.05 Save £69.95 | |
| EXM-3LTEA-R | EPX, SDX | 3x LTE-A Pro Cat 12 modems | 3x LTE-A Pro Cat 12Multi-Modem |
£1,599.00 £1,519.05 Save £79.95 | |
| EXM-2X5GN | EPX, SDX, SDX Pro | 2x 5G NR / 4G / 3G multi-mode modems | 2x 5G NRMulti-Modem |
£1,779.00 £1,690.05 Save £88.95 | |
| EXM-LCDT | EPX, SDX, SDX Pro | — | 1TB SSDDocker Support |
£1,869.00 £1,775.55 Save £93.45 | |
| EXM-SIM-BK56 | EPX, SDX Pro | — | 56 SIM SlotsMulti-Carrier |
£2,809.00 £2,668.55 Save £140.45 |
Built In
Technology Across the FlexModule Range
These capabilities appear on select FlexModule products — check each product’s specification above, or ask a specialist to confirm compatibility with your exact router model.
5G NR Ready
FlexModule Mini 5G and FlexModule Plus 2x 5G both carry genuine 5G New Radio modems (Sub-6GHz, SA/NSA) with LTE fallback — not just high-category 4G.
Field-Installable
Every FlexModule slides into a dedicated module bay on a compatible router chassis — a straightforward power-down install, no soldering or specialist tools required.
Multi-Modem Bonding
FlexModule Plus 3x LTE-A and 2x 5G modules carry multiple independent modems in one module for SpeedFusion bonding and carrier failover on EPX and SDX.
Edge Storage & Compute
The FlexModule Plus MFA module adds 1TB of local SSD storage with Docker container support — for edge compute and content-caching workloads on EPX and SDX.
Common Questions
FlexModule — Frequently Asked Questions
Which FlexModule fits my router?
FlexModule Mini fits the single expansion bay on Balance 20X, 380X and 580X. FlexModule Plus fits the larger module bays on EPX, SDX and SDX Pro — EPX supports up to 7 FlexModule Plus bays, SDX/SDX Pro support 2. Check your router’s exact bay count before ordering multiple modules.
Can I install a FlexModule myself, and is it hot-swappable?
Installation is straightforward but not hot-swappable — Peplink’s own install guide requires powering down the router, disconnecting antennas, removing the existing module or cover, and screwing in the replacement. No soldering or specialist tools are required, but the router will be offline briefly during the swap.
Is the FlexModule Mini 5G and FlexModule Plus 2x 5G genuine 5G, or just fast 4G?
Both carry genuine 5G New Radio (NR) modems — Sub-6GHz, Standalone and Non-Standalone — with high-category LTE as automatic fallback where 5G coverage isn’t available. They are not simply high-category LTE-A modules marketed as “5G.”
Do antennas come included with the cellular modules?
No — every LTE-A and 5G FlexModule (Mini and Plus) requires antennas to be purchased separately, matched to the module’s connector count and type. See our Antennas range for compatible options.
Is the price shown the final price?
Peplink’s UK list price and is shown ex VAT. VAT and delivery are calculated at checkout — orders over £750 (ex VAT) ship free within the UK; a flat £15 (ex VAT) delivery charge applies below that threshold.
