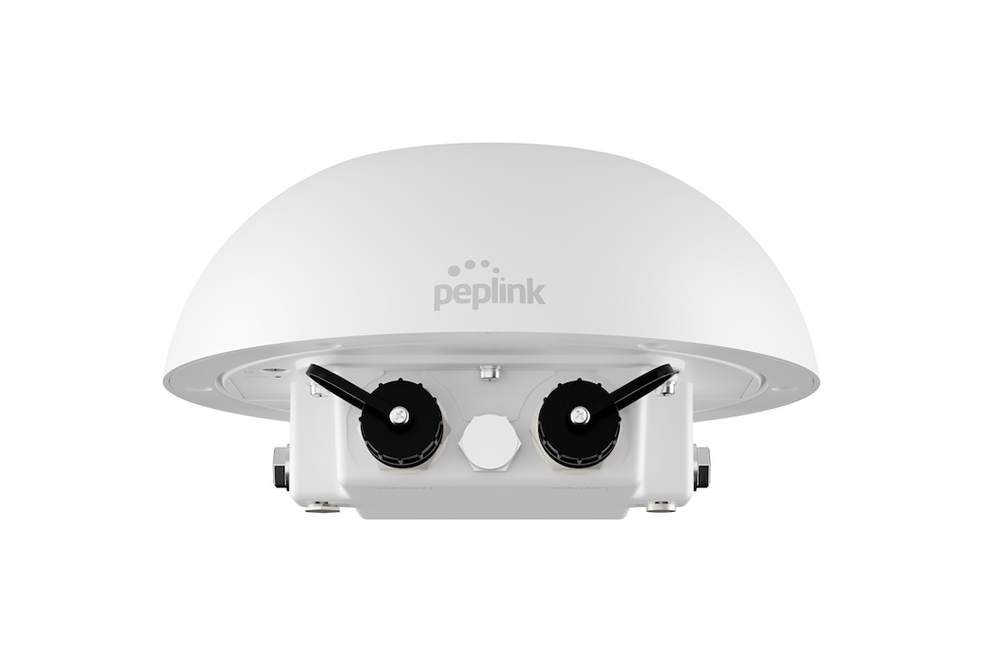

Peplink HD1 Dome Pro
Peplink HD1 Dome Pro
Our Price: Request a Quote
Overview:
A refinement in outdoor interconnectivity
The HD1 Dome Pro adapts to the flexible nature of outdoor deployments, offering powerful speeds, with refined Wi-Fi options. The 5G modem, with its embedded cellular antennas, ensures minimal cable loss and offers the finest signal quality.

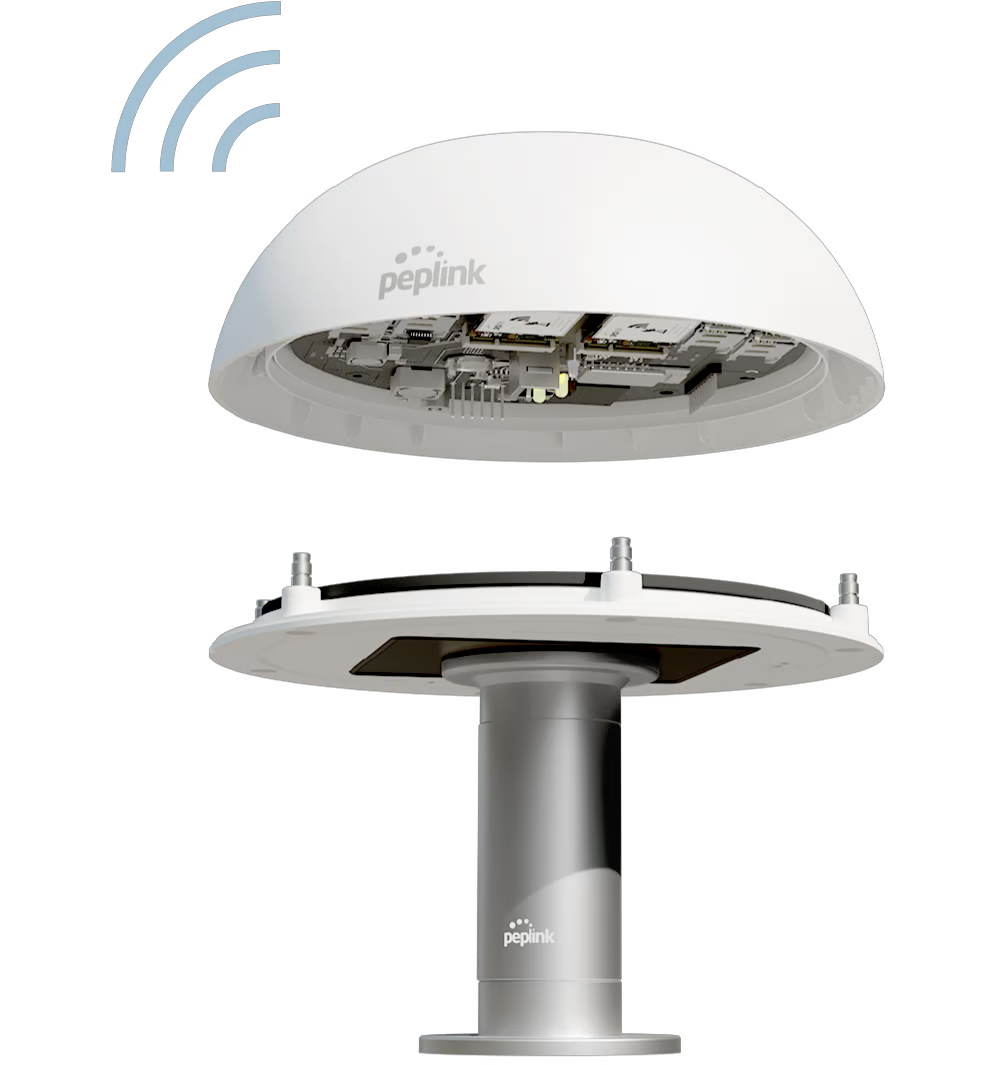

Wi-Fi as WAN Wi-Fi 6
The Wi-Fi 6 and Wi-Fi as WAN support can optimize your network and provide versatility as and when required. Leverage bandwidth costs and easily expand your network. Experience no more interruptions with SpeedFusion’s hot failover options.
A design that’s made to meet your needs

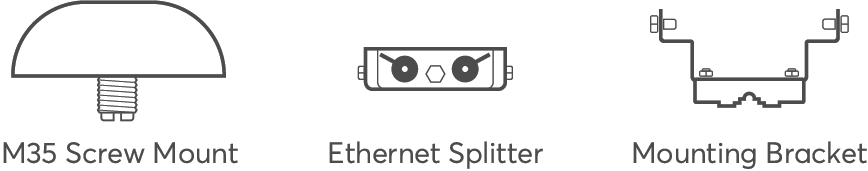

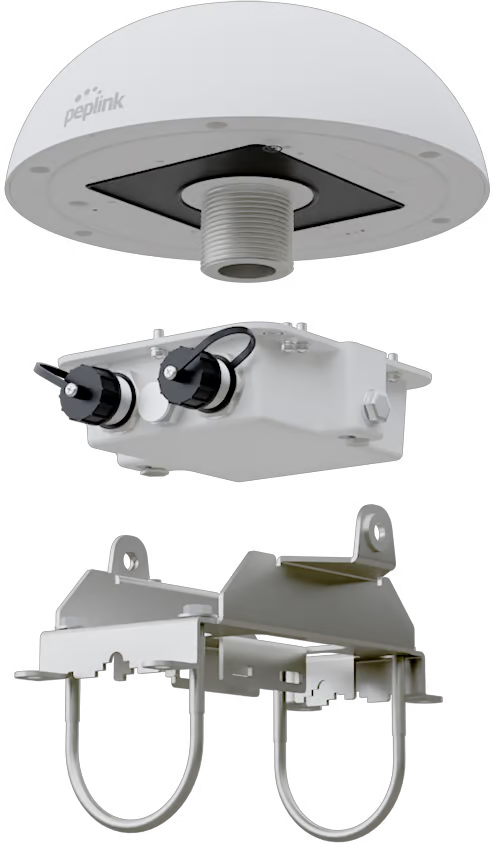

It’s simple design offers a multitude of installation options. The HD1 Dome Pro includes an M35 screw mount and Ethernet splitter, making it easy for wall or pole mount. If mounting is not needed, simply connect an Ethernet cable and it’s good to go.
Together it works

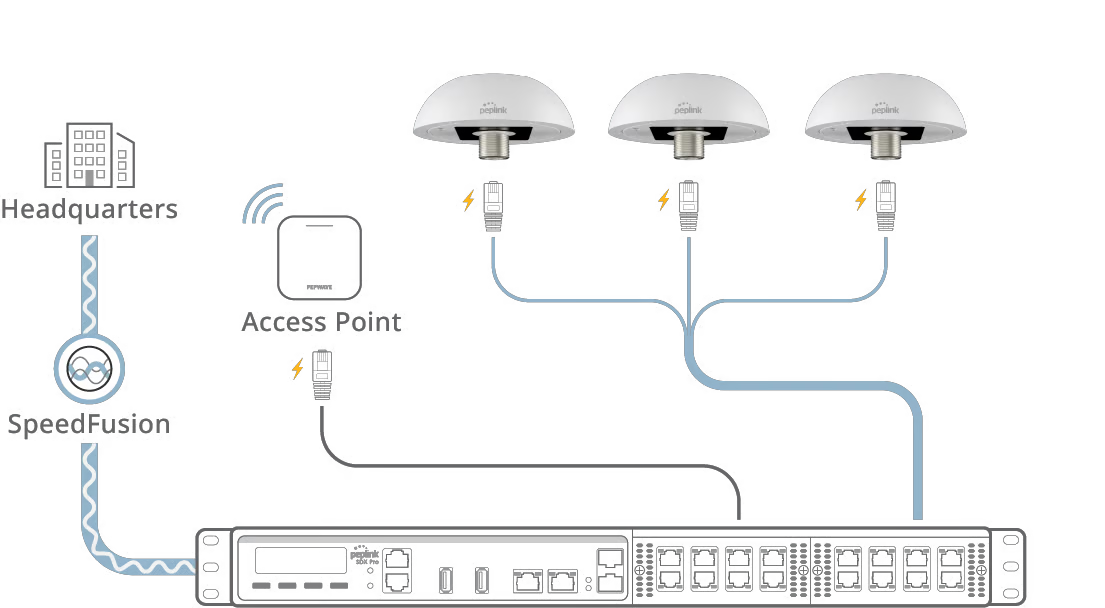

The HD1 Dome Pro can optimize network performance with its PoE functionality. Leverage the power of SpeedFusion by simply connecting Peplink PoE routers, for a mega-bandwidth channel, with the simplest failover option. Or alternatively, extend the Wi-Fi range by connecting an external access point.
Instant flexibility with the SIM injector

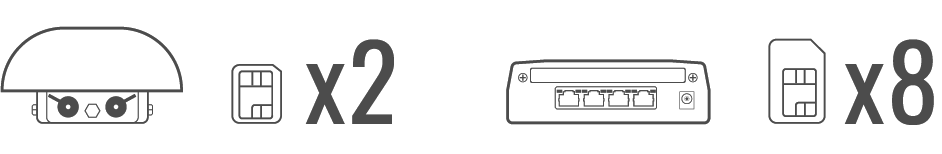

Simply connect an Ethernet cable between the SIM injector^ and the HD1 Dome Pro to manage up to 10 physical SIMs.
With remote network management available via Peplink’s cloud-based management system, InControl 2, accessibility worries are a thing of the past.
^For a limited time only, we are now offering bundle value when purchased together. Contact your point of sales for more information.
Features:
5G Router Performance
Fast 1 Gbps routing throughput with built-in 5G cellular modem.
eSIM and Dual SIM Slots
Bring your own data plans via eSIM profiles or dual physical SIM cards.
Fixed-Wireless Access
Use 5G as your primary Internet connection, with other options such as Starlink as backup.
Dual WAN
Supports two separate Ethernet WAN connections in addition to a built-in 5G cellular connection.
SpeedFusion
Better than failover or load balancing, bonds all your connections into hyper-reliable connectivity.
Ports
2x Gigabit WAN ports, 4x Gigabit LAN ports, 1x USB-C port
Dual-Band WiFi
Two concurrent WiFi bands maximize connectivity to your devices: 1 band at 5GHz and 1 band at 2.4GHz.
VPN
VPN supports IPSec, PPTP, L2TP and OpenVPN protocols, as well as Peplink’s patented SpeedFusion VPN for 256-bit AES encrypted high reliability, high security connections.
Firewall
Stateful firewall for small business security with DoS prevention and web blocking.
VLAN Routing
Supports VLAN setups with port mapping and and Inter-VLAN routing.
Multiple SSID WiFi
Create up to 16 wireless networks each with their own SSID.
QoS
Quality of Service features enable prioritizing voice, video and even application-specific connections to improve reliability and overall network performance.
Firmware Updates
Firmware updates are supported for the life of the product.
Remote Management
Supports web-based, app-based and InControl cloud-based device and configuration management.
Upgradeable
Supports and controls additional WiFi Access Point for extended coverage, add additional WAN connection via USB-C port.
Transform your small business with the B One Wi-Fi Small Business Router.
Ensure reliable, secure, and high-speed connectivity for all your business operations. Empower your team, enhance productivity, and stay ahead of the competition with a networking solution designed for success.
Benefits:
Continuous Connectivity
Avoid costly downtime with automatic failover to 5G backup internet. Whether it’s a power outage, maintenance, or unexpected issues with your primary provider, stay online without interruption.
High-Speed Performance
Enjoy lightning-fast speeds and low latency with 1 Gbps routing. Backup 5G internet ensures that even during an outage, your critical applications, video conferencing, and online activities continue smoothly.
Enhanced Productivity
Ensure your business operations or personal activities never come to a halt. With 5G backup internet, maintain productivity and efficiency regardless of primary internet issues.
Cost-Effective
Prevent revenue loss and productivity dips associated with internet outages. For less cost than your daily cup of coffee, enjoy the peace of mind knowing your business is backed up from Internet outages.
Easy Setup and Use
Setting up 5G backup internet is straightforward. With an optional Peplink data plan, backup 5G is pre-configured. Or, bring your own 5G plan via eSIM or physical SIM cards.
Specifications:
| HD1 Dome Pro Specifications | |
|---|---|
| WAN Interface | 1x 5G/LTE Modem with Redundant SIM Slots 1 |
| LAN Interface | 1x 10/100/1000M Ethernet 2 3 |
| Wi-Fi Interface | Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6, 2X2 MIMO Wi-Fi WAN and/or AP |
| Number of SpeedFusion VPN Peers | 2 |
| Enclosure | Rugged outdoor IP67 (with Ethernet Splitter) |
| Recommended Users | 150 |
| Cellular Data Rate (Downlink / Uplink) | 5G: 3.4 Gbps / 900 Mbps |
| Antenna | 4x4 Internal MIMO Cellular Antennas 2x2 Internal MIMO Wi-Fi Antennas 1x Internal GPS Antenna |
| Power Input | 1x 802.3at PoE+ |
| Power Output | 1x 802.3af PoE (with Ethernet Splitter) |
| Power Consumption | 20 W (max., without PoE output) |
| Dimensions | 4.33 inches (radius) x 4.53 inches (height) 110 mm (radius) x 115 mm (height) |
| Weight | With Ethernet Splitter: 3.75 pounds / 1.7 kg Without Ethernet Splitter: 2.65 pounds / 1.2 kg |
| Operating Temperature | -40°– 149°F / -40°– 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certifications | FCC, CE, RoHS, EN 50124-1 Railway Application - Insulation Coordination EN 50155 Railway Application - Rolling Stock - Electronic Equipment EN 61000 Electromagnetic Compatibility |
| Package Content | MAX HD1 Dome Pro, Ethernet Splitter, 2x Waterproof Ethernet Connector (ACW-112), Mounting Kit Set |
| SIM Options | Nano-SIM (4FF) Peplink eSIM BYO eSIM (2 profiles) 5 RemoteSIM from SIM Injector FusionSIM |
| Warranty | 1-Year Limited Warranty |
1 SIM Injector is available separately.
2 Ethernet LAN port can be split into two LAN ports using the included splitter (1x LAN 802.3af PoE out, 1x LAN 802.3at PoE+ in).
3 Ethernet port includes surge and ESD protection circuits to protect against over-voltage transients.
4 Certification Pending.
5 Available with Firmware 8.4.0 or above.
Documentation:
Download the Peplink HD1 Dome Pro Datasheet (PDF).
