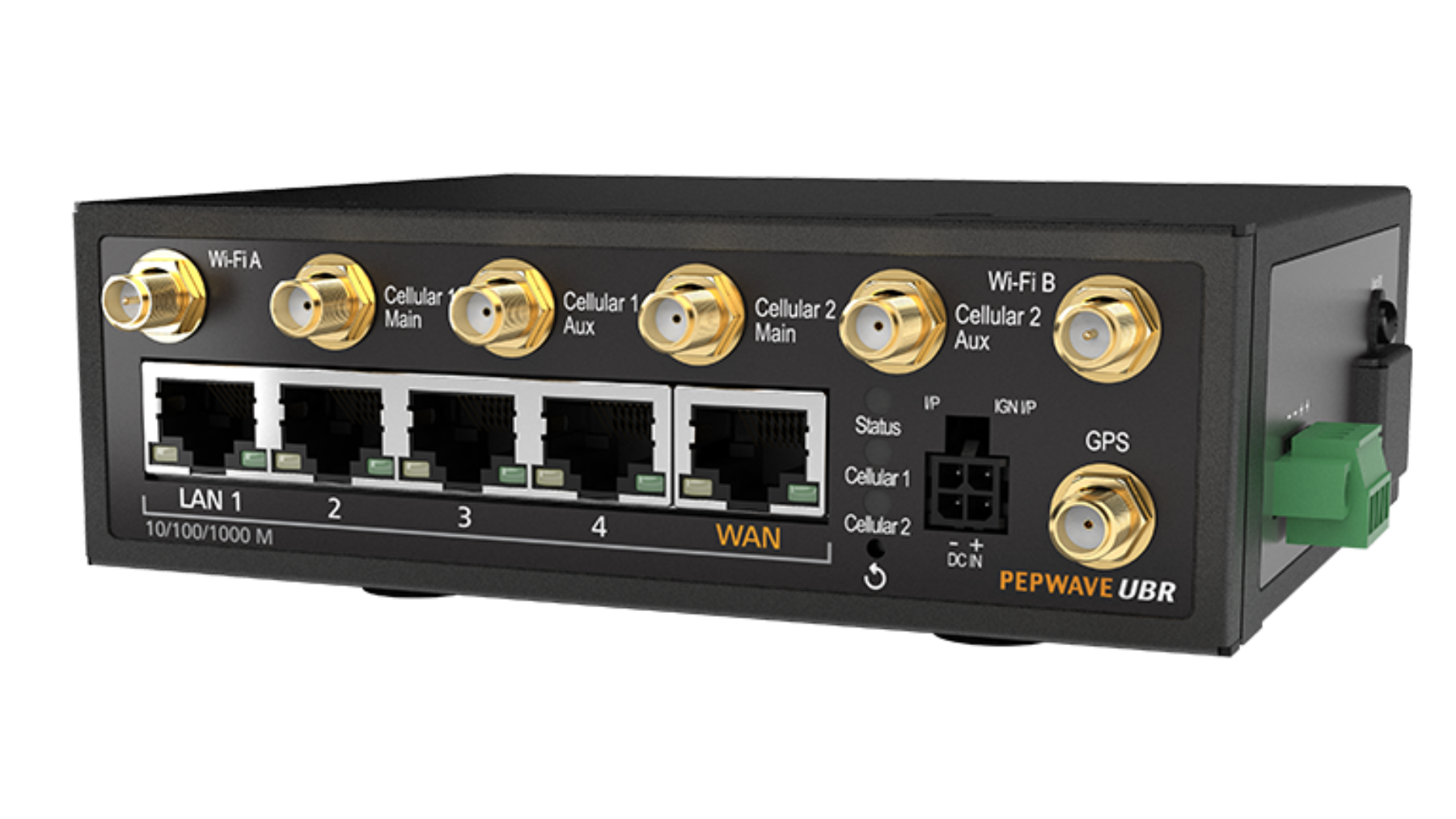

Pepwave UBR LTE
Unbreakable Connectivity Right Out of the Box

Pepwave UBR LTE
Peplink Products
Pepwave UBR LTE
Pepwave UBR LTE (Europe/Int'l GSM)
#UBR-LTE-E-T-PRM
Our Price: Request a Quote
Accesories
SIM Injector, 8x SIM cards capacity, 4x 10/100/1000 LAN ports, 56V DC
#SIM-BK8-4E-56V
Our Price: Request a Quote

More pricing below, click here!

Please Note: All prices displayed are Ex-VAT. 20% VAT is added during the checkout process.

Overview:

Affordable Unbreakable Connectivity

The UBR LTE provides an all-in-one WAN solution for industrial deployments with GE WAN, 4X GE LAN, and 2X LTE connectivity as well as Peplink's SpeedFusion SD-WAN bonding technology.

Build to Last

DIN mounts and Molex power connectors let the UBR LTE integrates seamlessly with your existing equipment racks. In addition, the fanless, ruggedized chassis supports an extended operating temperature range.


UBR LTE Prime care

All in One SpeedFusion

Straight out of the box, the UBR LTE provides unbreakable connectivity with PrimeCare, which includes SpeedFusion functionality, FusionHub licenses, and browser-based SD-WAN manage-ment with InControl.


Traffic Steering

Instantly recognize the application for each packet. Then apply different outbound policy, firewall rules, or even SpeedFusion technologies to the traffic depending on its application.

UBR LTE Traffic Steering


UBR LTE Specs

Specifications:


  Pepwave UBR LTE
WAN Interface 1x GE
2x LTE Modems
SIM Card Size Mini-SIM (2FF)
Redundant SIM Slots Yes
LAN Interface 4x GE
Wi-Fi Standard 2.4GHz: 802.11b/g/n OR 5GHz: 802.11a/n
Wi Fi as WAN Yes
Antenna Connectors 4x SMA Cellular, 2x Wi-Fi, 1x SMA GPS
Recommended Users 1 to 60
Router Throughput 120 Mbps
SpeedFusion Hot Failover Yes^
SpeedFusion WAN Smoothing Yes^
SpeedFusion Bandwidth Bonding Yes^
Number of PepVPN/SpeedFusion Peers 2/5^
SpeedFusion Throughput (No Encryption) 40Mbps
SpeedFusion Throughput (256-bit AES) 20Mbps
Power Input Device: 12V - 28V DC AC Adapter: AC Input 100V - 240V / DC Output 12V Terminal Block: 12V - 28V DC
Power Consumption 24W (max.)
Dimensions 5.1 x 4.3 x 1.6 inches | 130 x 110 x 41 mm
Weight 1.2 pounds / 515 grams
Operating Temperature -40° - 149°F
-40° - 65°C
Certifications FCC, CE, RoHS, IC, E-mark
EN 61000: Electromagnetic Compatibility
Warranty 1-Year Limited Warranty

^ Requires PrimeCare Subscription, complementary for the first year.

Documentation:

Download the Peplink UBR LTE (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.
