Pepwave AP One In-Wall
Fast, Secure and Manageable Enterprise Wireless for Every Environment

Pepwave AP One In-Wall
Peplink Products
Pepwave AP One In-Wall
AP One In-Wall
#APO-AGN2-IW
List Price: £279.00
Our Price: Request a Quote

More pricing below, click here!

Please Note: All prices displayed are Ex-VAT. 20% VAT is added during the checkout process.

Overview:

Pepwave AP One access points deliver enterprise-grade performance, the flexibility to deploy anywhere, and easy setup and management. From the tiny but mighty AP One In-Wall to the super-tough AP One Flex, the AP One series offers fast, secure, long-range Wi-Fi that goes wherever you do.

AP One Features

Go the Distance.

Our exclusive TruePower RF range- and signal-boosting technology virtually eliminates dead spots and dropouts. With TruePower RF, you get full transmit power across all channels, giving you unmatched range and reliability with less equipment and fewer management headaches. TruePower RF requires zero setup or configuration, and it's part of every AP One access point.

Go for Easier AP Management.

It's simple to configure AP One series access points wherever you work. For onsite management, you have complete control and comprehensive reporting from any Peplink Balance router. And with InControl 2, our cloud management solution, you get real-time client lists and bandwidth activity, plus a handy device snapshot, all from any device running a supported web browser.

Go Wireless Anywhere.

Indoors or outdoors, there's an AP One access point for any job.

AP One AC mini

  • 802.11ac Wi-Fi AP for Business
  • Manageable by InControl 2: one-stop cloud based platform, comprehensive reporting and configurations
  • Simultaneous Dual-Band 802.11ac/a/b/g/n
  • Mini Enclosure, 802.3af PoE Input

Pepwave AP One 300M

  • Professional Wi-Fi AP for Business
  • 802.11a/b/g/n AP (2x2)
  • 16 SSID, 802.3af
  • Balance WLAN Controller Ready
  • PoE Injector not included

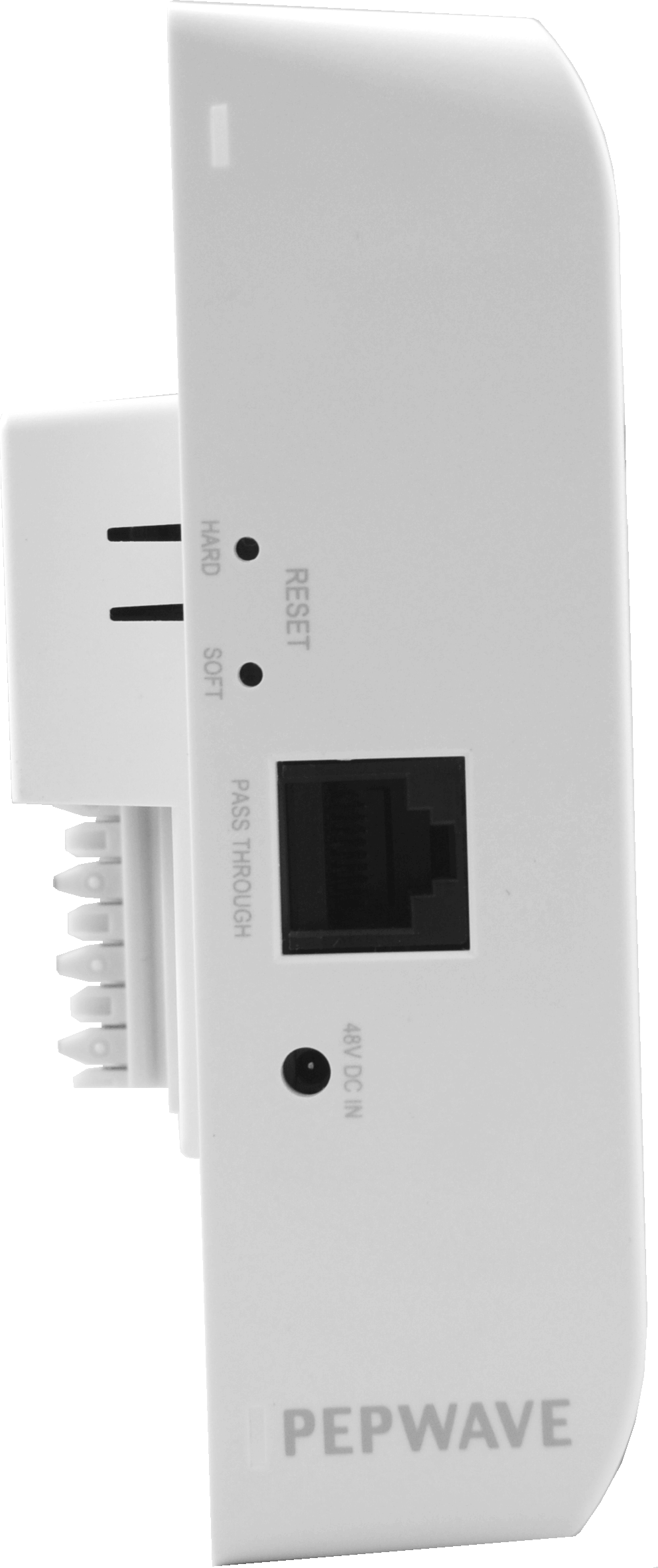

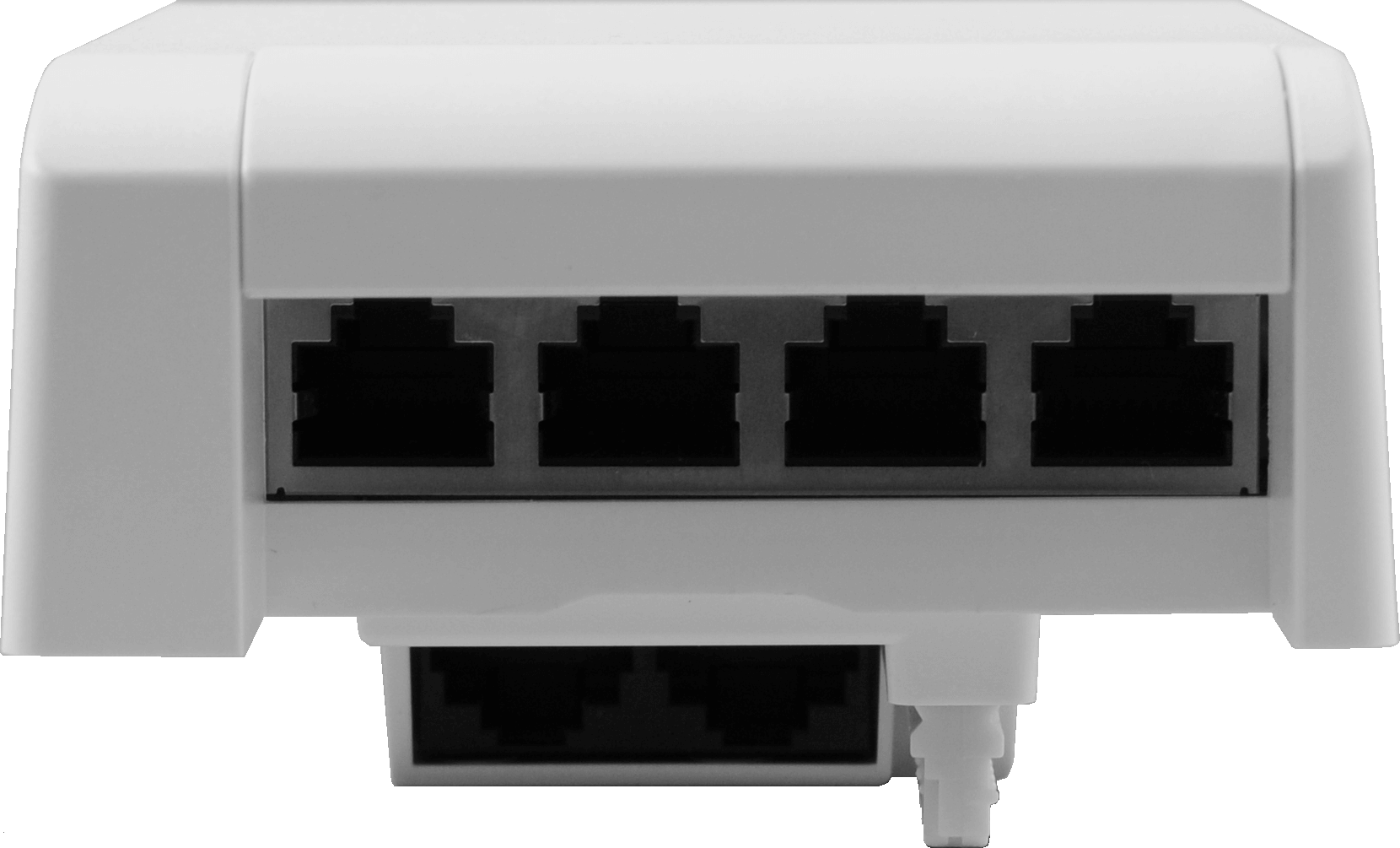

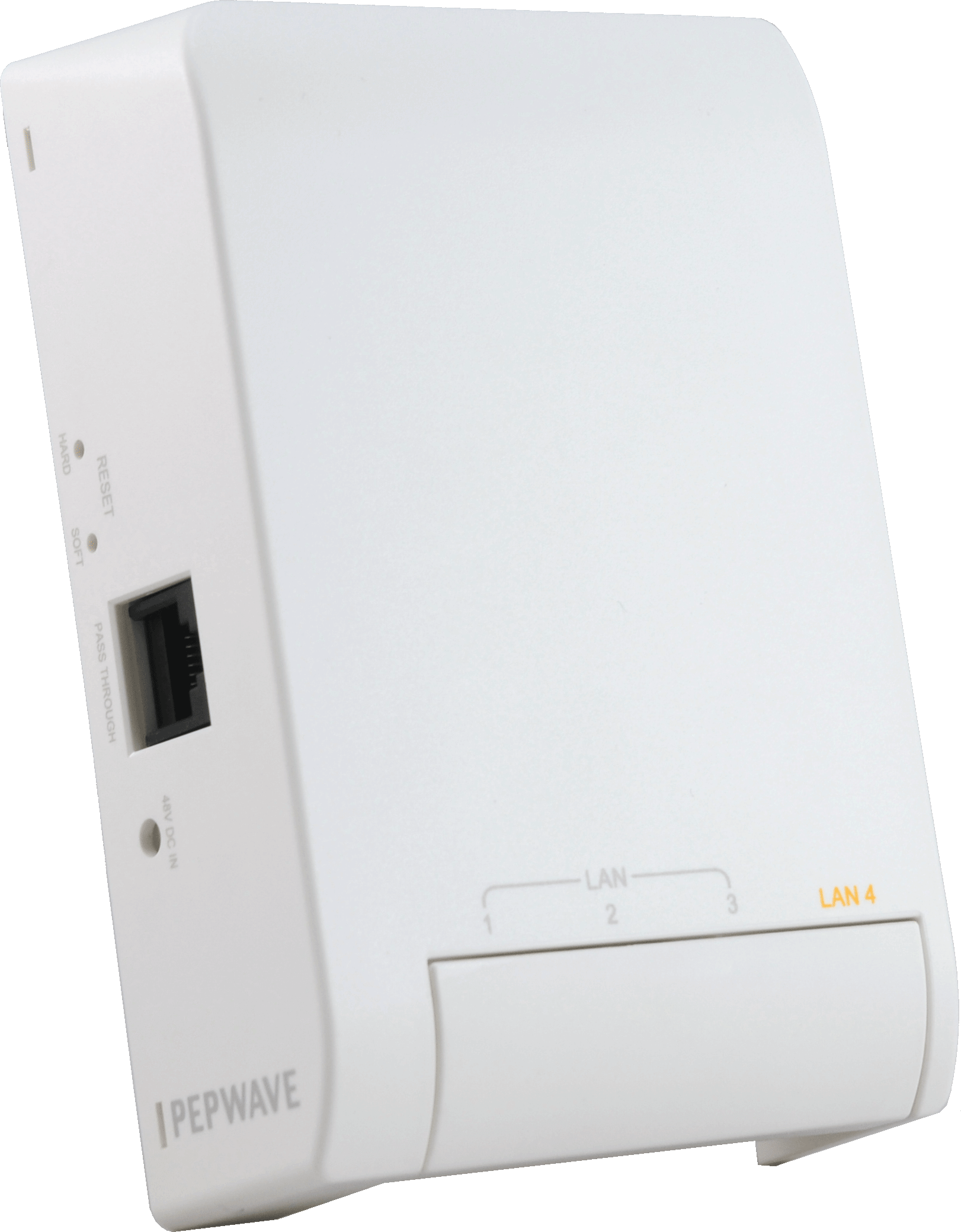

AP One In-Wall

  • Cloud Managed Wi-Fi AP for Hotels
  • Simultaneous Dual-Band 802.11abgn, 300M (2x2)

AP One Flex 300M

  • Cloud-Managed Outdoor Wi-Fi AP
  • 802.11bgn
  • 300M (2x2), 400mW Tx Power
  • Switchable Directional or Omni Antenna
  • IP55 Enclosure, Passive PoE Input
  • 12V PSU and Passive PoE Adapter Included

Applications:


For SMBs - Setup, Manage, and Monitor Office Wi-Fi from Your Peplink Balance

For SMBs

For Hospitality - Offer Guest Hotspots Complete with Captive Portals

For Hospitality

For Education - Setup, Manage, and Monitor Campus Wi-Fi from Your Peplink Balance

For Education

Compare:


AP One Model Comparison
Indoor Desktop or Wall-Mount Installation Standard US/EU Single Gang Wall Jack Installation Outdoor Installation. Wall and Pole Mount Friendly
Model AP One mini AP One AC mini AP One 300M AP One In-Wall AP One Flex 300M AP One Flex 600M
(Available Soon)
Basic
WAN Interface 1x 10/100M Ethernet Port 1x 100/1000M Ethernet Port 2x 100/1000M Ethernet Ports 1x 10/100M Ethernet Port
1x 110 Punch Down Block
1x 10/100M Ethernet Port
LAN Interface 802.11a/n or 802.11b/g/n 150Mbps Simultaneous 802.11ac/a/n and 802.11b/g/n 1166Mbps 802.11a/n or 802.11b/g/n 300Mbps Simultaneous 802.11a/n and 802.11b/g/n 600Mbps
4x 10/100M Ethernet Ports
802.11b/g/n 300Mbps
2x 10/100M Ethernet Ports
Simultaneous 802.11a/n or 802.11b/g/n 600Mbps
2x 10/100M Ethernet Ports
Wi-Fi Operating Frequency 2412 - 2472 MHz or
5180 - 5825 MHz
2412 - 2472 MHz and
5180 - 5825 MHz
2412 - 2472 MHz or
5180 - 5825 MHz
2412 - 2472 MHz and
5180 - 5825 MHz
2412 - 2472 MHz 2412 - 2472 MHz and
5180 - 5825 MHz
Wi-Fi Transmit Power 2412 - 2472 MHz: 17dBm
5180 - 5825 MHz: 17dBm
2412 - 2472 MHz: 24dBm
5180 - 5825 MHz: 21dBm
2412 - 2472 MHz: 25dBm
5180 - 5825 MHz: 22dBm
2412 - 2472 MHz: 17dBm
5180 - 5825 MHz: 16dBm
2412 - 2472 MHz:
25dBm
Coming Soon
Maximum Concurrent Users 60 60 60 60 60 60
Hardware
Included Antenna Dual-Band Omni Antenna
Antenna gain: 3dBi for 2.4GHz, 5dBi for 5GHz
Built-In Omni Antenna
Antenna gain: 2dBi for 2.4GHz, 4dBi for 5GHz
2x Dual-Band Omni Antenna
Antenna gain: 3dBi for 2.4GHz, 5dBi for 5GHz
Built-In MIMO
Omni Antenna
Antenna gain: 2dBi for 2.4GHz, 4dBi for 5GHz
Built-In, Switchable 10dBi MIMO Directional (75° Horizontal x 35° Vertical Beamwidths)
and 4dBi MIMO Omni Antennas
Coming Soon
Antenna Connector RP-SMA Connector N/A 2x RP-SMA Connector N/A
Enclosure Low-Profile, Indoor Plastic Enclosure Low-Profile, Indoor Plastic Enclosure Ruggedized Metal Enclosure Low-Profile, Indoor Plastic Enclosure. Mounts Into Standard US/EU Single Gang Wall Jack Waterproof IP55 Outdoor Enclosure
Dimensions 3.7 x 3.6 x 1 inches
94 x 90 x 25.5 mm
3.9 x 3.9 x 0.8 inches
98 x 98 x 19.7 mm
5.8 x 4.6 x 1.6 inches
147 x 115 x 40 mm
US:
5 x 3.4 x 2.1 inches
128 x 86 x 53.5 mm
International:
3.4 x 3.4 x 2.1 inches
86 x 86 x 53 mm
11.8 x 4.9 x 1.9 inches
300 x 124 x 47 mm
Weight 0.21 pound
95 grams
0.33 pound
150 grams
0.93 pound
420 grams
US:
0.37 pound
170 grams
International:
0.34 pound
155 grams
1.15 pounds
520 grams
Operations
Power Input AC Adapter: AC Input 100V to 240V,
DC Output 12V, 1A
AC Adapter: AC Input 100V to 240V,
DC Output 12V, 1A
Power over Ethernet 802.3af
(Injector Not Included)
AC Adapter: AC Input 100V to 240V,
DC Output 12V, 2A
Power over Ethernet 802.3af
(Injector Not Included)
48V DC Connector
802.3af/802.3at PoE
Pepwave Passive PoE: 12V - 48V DC, 2A
(48V Pepwave Passive PoE Input is Needed for 802.3af or Pepwave Passive PoE Output)
Power Consumption 9W (max.) 12W (max.) 11W (max.) 15W (max.) 15W (max.) 25W (max.)
Operating Temperature -4° - 149°F
-20° - 65°C
23° - 113°F
-5° - 45°C
-4° - 149°F
-20° - 65°C
-4° - 104°F
-20° - 40°C
-4° - 149°F
-20° - 65°C
Humidity 15% - 95% (non-condensing)
Certifications FCC, CE, RoHS
Warranty 1-Year Limited Warranty

Specifications:

AP One Specs

Technical Specifications:


Network

  • Bridge Mode
  • Router (NAT) Mode
  • Wireless Distribution System (WDS)
  • Support for PPPoE, Static IP, DHCP
  • Management VLAN (802.1p)
  • Spanning Tree Protocol (802.1d)

Radio

  • Multiple SSID
  • Auto Channel Selection
  • Transmit Power Adjustment
  • Neighbor AP Detection

AP Security

  • Open, WEP
  • 802.1x with Dynamic WEP
  • WPA-PSK/RADIUS
  • WPA2-PSK/RADIUS

Client Managment

  • Per SSID
    • VLAN with QoS (802.1p/802.1q)
    • Bandwidth Control
    • MAC Address Filtering
    • Layer 2 Client Isolation
    • Limit on Max. Number of Client
  • Per Client
    • VLAN with RADIUS
    • VLAN with VLAN Pool
    • Bandwidth Control
    • Multicast Filter
    • IGMP Snooping/Multicast Enhancement

Complete VPN Solution

  • PepVPN
    • Site-to-Site VPN
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
  • PPTP VPN Server
  • RADIUS, LDAP Authentication
  • IPsec VPN (Network-to-Network) 1

Captive Portal

  • By InControl
  • By Peplink AP Controller

Device Management

  • Web Administrative Interface
  • InControl Cloud Management
  • Peplink AP Controller
  • SNMP v1, v2c and v3

Package Content

  • AP One mini
    • AP One mini
    • 12V Power Supply
    • 5dBi Omni Antenna
  • AP One 300M
    • AP One 300M
    • 12V Power Supply
    • 2x 5dBi Omni Antenna
  • AP One In-Wall
    • AP One 300M
    • AP One In-Wall
    • Mounting Bracket for US or EU/Worldwide Single Gang Wall Jack

Certifications 2

  • FCC, CE, RoHS
1 IPsec VPN supports connection with Cisco, Juniper, Pepwave, or Peplink devices.
2 Certification differs for different models, please refer to the respective model for details.

All specifications are subject to change without notice.

Documentation:

Download the Pepwave AP One Datasheet (PDF).
